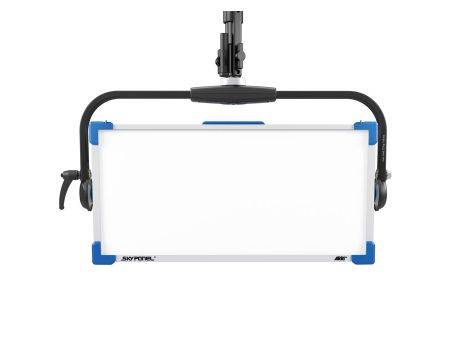

Arri S60-C Ultra-Bright LED Soft Light SkyPanel (Schuko power plug)

Arri S60-C Ultra-Bright LED Soft Light SkyPanel (Schuko power plug)

Add to Wish List Enquire Now
  • Fully Tuneable. Get the color you want in seconds.
  • Tremendous Output. One of the brightest soft lights on the market.
  • True Soft Light Beam Quality. Soft and uniform is the name of the game.
  • Outstanding Color Rendition. LED white light without sacrifices.

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, colour, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.

SkyPanel will initially be available in two sizes: the S60 and S30. The S60 is a midrange model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile app ications. Both models are available in fully color tuneable and remote phosphor versions.

Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Colour) versions are fully tuneable; correlated colour temperature is adjustable between 2,800 K and 10,000 K, with excellent colour rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and colour gives users an unprecedented amount of control.

Advanced Media is ARRI authorized distributor. Contact Advanced Media Dubai for Arri S60-C Ultra-Bright LED Soft Light SkyPanel (Schuko power plug)

More Information
SPECS:
Lamphead:


Optical System: Soft Diffusion Panel

Light Aperture: 645 x 300 mm / (25.4 x 11.8 inches)

Beam Angle: 110 (Half Peak Angle)

Weight: Manual Version: 12 kg (26.5 lbs)
  Pole Op Version: 13 kg (28.7 lbs)

Handling: Steel Yoke, High Strength Tilt Lock, Pole Operation Option (Pan & Tilt)

Mounting: 28 mm Spigot (Junior Pin)

Tilt Angle: +/- 90

Lamphead Voltage Input: 48 V DC

Power Consumption: 420 W Nominal, 450 W Maximum

Lamphead Power Connection: Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)

Battery Connector: Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)

Battery DC Voltage Range: 23 - 36 V DC

Battery Mode Light Output: 50% of Total Output

White Light: 2,800K - 10,000K Continuously Variable Correlated Color Temperature

Coloured Light: Full RBG+W Color Gamut with Hue and Saturation Control

Colour Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

Colour Rendition: CRI Average Greater 95
  TLCI Average Greater 90

Green-Magenta Adjustment: Continuously Adjustable (Full Minusgreen to Full Plusgreen)

Dimming: 0 - 100% Continuous

Control: On-Board Controller, 5-Pin DMX In and Through,
  EtherCon LAN Network Connectivity, USB-A

Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands

USB Interface: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac and USB Stick

Housing Colour: Blue/Silver, Black

Ambient Temperature Operation: -20 to +45 C (-4 to +113 F)

Protection Class: IP 20

Estimated LED Lifetime (L70): 50,000 hours

Estimated Colour Shift Over Lifetime: Less than 200 K

Certifications (pending): CE, FCC; GS, cNRTL, CB


Power Supply Unit:


Power Supply Input Range: 90 - 250 V AC, 50 - 60 Hz

Power Supply Output Range: 48 V DC

Power Input Connection: powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)

Power Output Connection: Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive)
  powerCON TRUE1 (mains power through)

Weight: 5 kg (11 lbs.)

Control: On-Board On/Off Switch

Mounting: Super Clamp Attachement / SkyPanel PSU Rail Mount
