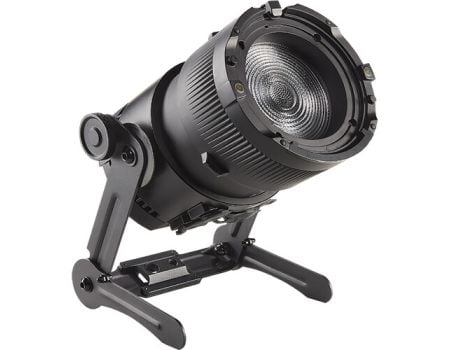

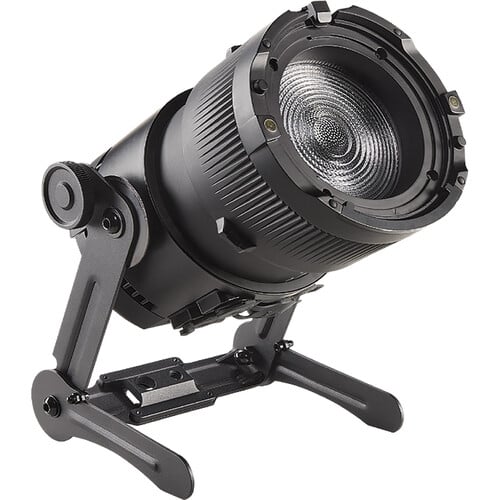

Astera QuikSpot Zoomable Fresnel-Based Spotlight

Astera QuikSpot Zoomable Fresnel-Based Spotlight

QuikSpot is a battery-driven uplight, a precise zoomable Fresnel and a versatile, compact spotlight. With seamless integration into the Astera ecosystem, it's the technician's best friend, always ready to run and tackle any job.

• Zoomable and controllable wireless spotlight
• Makes your workflow quick and efficient
• High quality whites and intense colors

Accurate Performance, Flexible Use

• Optimized Battery Runtime: Delivering 4.5 hours of maximum runtime with OutputGain activated, QuikSpot offers the best size-to-output wireless performance in its class. Charging and prepping is also extremely easy with the battery-driven PrepBox and its ChargingPlate.
• Efficient optical design: QuikSpot's lens system is specifically designed for maximum brightness, while working as a high-quality Fresnel. Use it as a hard spotlight, flood it for wide angle coverage, use filters to shape the beam or attach the SafetyLink-ready Barndoors for precise cuts.
• Rigging made easy: Whether hung or on the floor, QuikSpot is ready to rock: focus it with the removeable Yoke or angle it with the integrated Kickstand, mount a pin in the back or add a TrackPin Compact to the airline track, attach a third-party clamp or use a FlexCover to blend the fixture into the surroundings.

Adjustable, Versatile Beam

• QuikTurn: As simple as it seems. Adjust QuikSpot's beam angle from 13º to 60º by simply turning the barrel. QuikTurn will stop at 30º to indicate that you are in the middle of the zoom range.

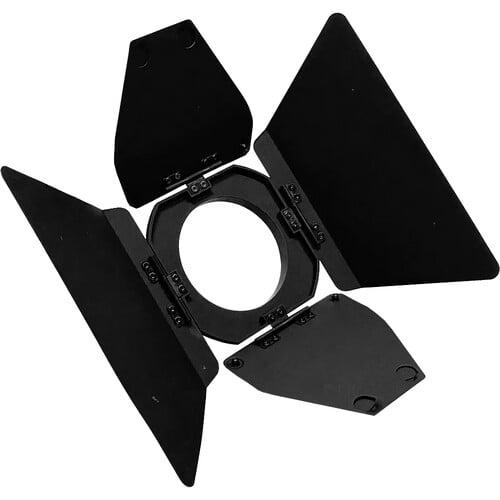

• Barndoors with SafetyLink: No need for extra safety wires for your accessories: The precise 8-way Barndoor can rotate 360º while the integrated SafetyLink is attached to the QuikSpot's housing.
• Rotatable elliptical filter: While QuikSpot is designed to hold all existing AX5 filters and front attachments, it works especially well with the Rotatable 17º x 46º Elliptical Filter.

Quik Mounting And Uplighting

• Removeable Yoke; foldable feet: On the floor or in the truss: the removeable Yoke is a very versatile attachment for tilt adjustment, it has two foldable feet, and it comes with an inbuilt airline track. And yes, you can mount or release QuikSpot's yoke in a matter of seconds.
• KickStand: To angle an elegant uplight has never been so easy. QuikSpot integrates our popular KickStand in the back of the housing for tilt focusing when no yoke is used.
• TrackPin Compact: Designed to reduce QuikSpot's height when using the yoke, the TrackPin Compact is a small and lightweight rigging accessory for the inbuilt airline track. The TrackPin Compact is especially useful when combined with third-party SuperClamps.
• 3/8" Thread: This pin-ready thread in the back of QuikSpot minimizes the visual impact on those installations where a yoke is not needed, offering an alternative mounting method for gobo heads or low-profile clamps.
• FlexCovers: FlexCovers are the best solution for corporate events where luminaries must be integrated into the environment. Made out of a flexible, lightweight material and attached via velcro, FlexCovers are available in White and Mirror looks.

Quik Charging and Quik Setup

• The easiest way to recharge: On stage, in the truck, or for location use: the ChargingPlate is the perfect companion to QuikSpot. Charge the batteries of up to 8 QuikSpots with a single TRUE1 cable, directly in the case. QuikSpot's ChargingPlate is fully compatible with PrepBox and can also charge your AX5 TriplePAR fixtures.
• The fastest way to prep: PrepBox was made to let you assign DMX in seconds, to blue-mode and pair up to 8 QuikSpots at once, to configure dimming and color in multiple devices without a controller. Thanks to its inbuilt battery, PrepBox powers up all the QuikSpots in your ChargingPlate with a single switch, saving time and effort. The PrepBox's OLED display will work in combination with the integrated Astera button on each QuikSpot, allowing individual configuration or multiple selection of fixtures.

Control Options

• Built-in CRMX: QuikSpot includes LumenRadio's wireless DMX and RDM, ensuring seamless integration with lighting consoles and other standard controllers. The DMX patch is extremely easy to configure: assign profiles, starting addresses and fixture numbers in no time via the PrepBox or the AsteraApp.
• AsteraApp: Take command of your Astera lights! The AsteraApp offers full control over QuikSpots and other Astera fixtures in the same smart ecosystem, while offering setup features and real-time monitoring.
• Wired DMX: We have included 5-pin XLR in + out sockets for a solid wired DMX connection. This enables the QuikSpot to be used as a wired PAR for longer installations.
• Remote Control: The WhiteRemote and FX Remote is not only a really useful tool to apply different color temperatures, colors, effects and dimming values, but also a simple and easy alternative to pair QuikSpots with the AsteraApp when the PrepBox is not available.
• On your light: The control panel offers intuitive control over your QuikSpot. Dedicated buttons offer swift control over brightness, HSI and colors.

Output Gain

• OutputGain ON: Maximum output and deep saturates! The best choice for events and stage lighting applications. Activated by default on your QuikSpot.
• OutputGain OFF: Perfect skin tones and natural color reproduction! The ideal setting when QuikSpot is used as keylight for camera-related applications.
