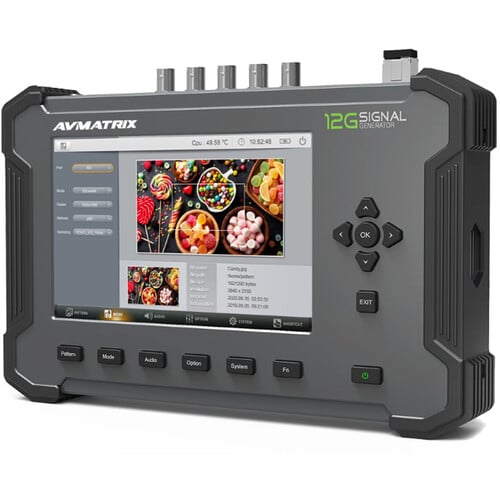

AVMATRIX 12G-SDI & 4K HDMI 2.0 Pattern Generator
SKU
PG 4K
- 12G-SDI(4K60Hz) single link, dual link, quad link (SQD/ 2SI)
- Support 6G-SDI, 3G-SDI level A and level B
- Support 4k HDMI2.0 video outputs
- Support 12G-SDI fiber signal (SFP optional)
- 16-Channel SDI audio generation
- Built-in patterns: Color bar, pathology patterns, monochrome, etc.
- USB Port for import the patterns
- Ring pattern, time code, frame counter overlay test and moving test
- REF in for frame synchronization

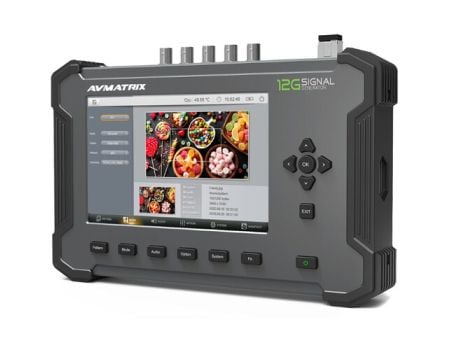

AVMATRIX 12G-SDI & 4K HDMI 2.0 Pattern Generator
Pattern Measurement
To test color temperature and gray scale of monitor with various types of patterns, such as color bar, monochrome display and customized pictures.
Preset & importable patterns
Custom
Free to create any color picture, based on two different color space- -RGB or YCbCr.
Built-in a plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.
Signal Compatibility
Supports SD, HD, 3G, 6G, 12G-SDI and 4K HDMI signals; SDI, Fiber and HDMI signals up to 4K 60Hz. SDI conversion among of different link structures, SQD and 2SI.
