USB Capture for Streaming
Connect the switcher to a computer via the USB-C output and use software like OBS, PotPlayer, or vMix to realize live streaming on YouTube, Facebook, Twitter, and other social media platforms.
Logo overlays are supported from a variety of different image file formats, including PNG, JPG, and BMP, and you have the option of capturing up to 16 screenshots and storing up to 16 images using the USB-A input with 39 default patterns and two color generators. A tally interface supports GPIO, still frame, mute, and fade-to-black (FTB) functionality.

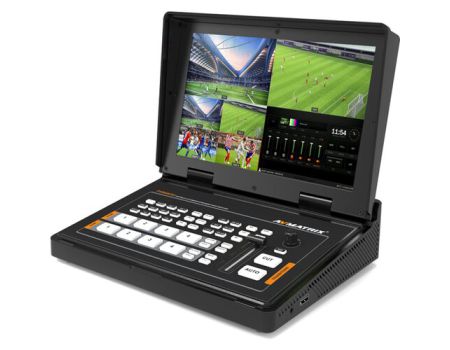

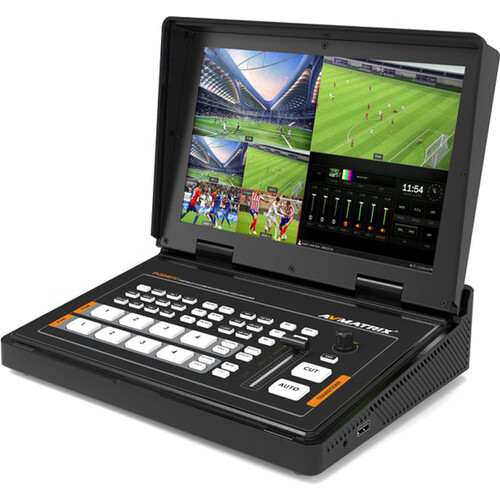

10.1" IPS Full HD Display
The integrated display enables you to clearly view preview, program with audio bar, multiview, clock, and menu settings.
Scaled Output and Multiview
The switcher supports multiview formats, including 1080p, 1080i, 720p, 576i, and 480p HDMI and SDI signals. Each output supports up/down scaling and can be configured as HDMI/SDI source, PVW, PGM, clean PGM, and multiview.
Upstream and Downstream Keying
The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.
Transition Effects
There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.
Powerful Media Management
The media management functions feature 39 preset patterns, and users can import images from a USB thumb drive or capture and store the screenshot image originating from SDI1, SDI2, HDMI3, HDMI4, clean PGM, and PGM.
Audio Mixing and Audio Follows Video
Easily mix the embedded audio from the two HDMI and two SDI sources or set the embedded audio function to AFV (audio follows video) mode. You can also bring in two external audio sources via the unit's two 3.5mm analog (mic/line) inputs.
PC Control Software
A free software can be downloaded from the manufacturer's website allowing users to control all settings of the device via IP.
