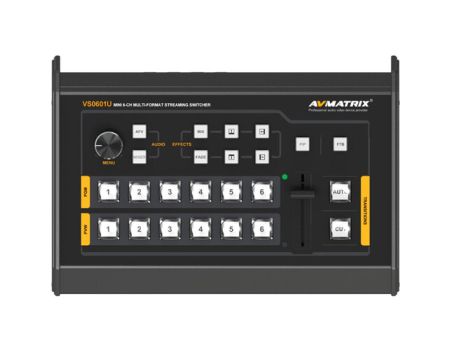

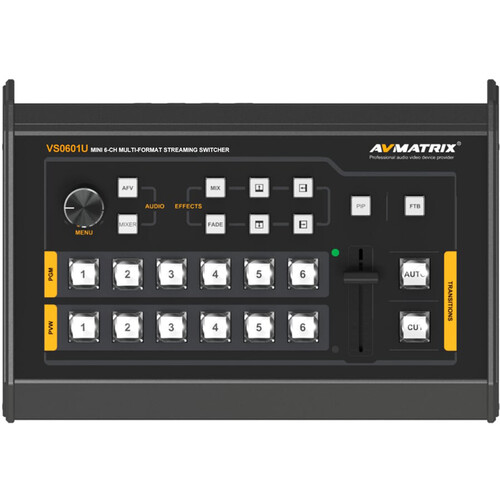

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher with USB Streaming

SKU
VS0601U
301

EXPECTED DELIVERY : 3-4Weeks

2024-12-28
AED 3,327.00
AED 3,493.35
Add to Wish List
Shipping Calculator
visa mastercard tabby
AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher with USB Streaming

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher with USB Streaming

Add to Wish List
  • Uncompressed capture for live streaming, comply with UVC & UAC
  • 6 channel inputs: 4x SDI & 2x HDMI
  • 1x USB type-C output, 2x SDI & 1x HDMI PGM outputs, 1x SDI & 1xHDMI multiview outputs
  • 1x SDI AUX output, can be selected as PGM or PVW
  • Multi-format inputauto-detected and PGM outputs format selectable
  • T-Bar/ AUTO/ CUT transitions
  • Mix/ Fade/ Wipe transition effects

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher with USB Streaming

VS0601U is a miniature design metal housing 6-channel SDI/HDMI multi-format live streaming video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment and more flexible. With cost effective price, it will be your perfect choice for various events production applications etc.

USB Capture For Streaming
The new VS0601U features with an added built-in USB Typc-C out. When connecting with PC, it will work like a webcam for capturing uncompressed video and audio quality and streaming your production to various software and platform like Twitch, Youtube, Facebook, Live, Zoom,etc. No driver needed and compatible with Windows 7/8/10, Linux and Mac OS.

Multi-format & Scaler
Flexible to accept 6 input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p.

Multiviwer Monitoring
Multiview output make it easy to monitor 6 cameras as well as PVW and PGM on one display at same time. Besides, a clock and menu list are located in the lower right corner of the multiview.

PIP
To insert a second picture into/outside the main picture. Simply adjust the size and position of windows and then overlay on the program.

Transition Effects
Transition between PVW and PGM with Wipe/ Mix/ Fade effect through T-bar & Auto.

Audio Mixer
A built-in audio mixer can mix 2 external stereo 3.5mm &RCA audio and 6ch embedded audios.

Portable Handbag
The switcher comes with a handbag, total around 1.7kg, very portable for taking to anywhere.
