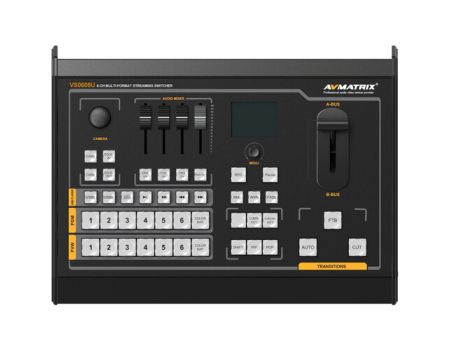

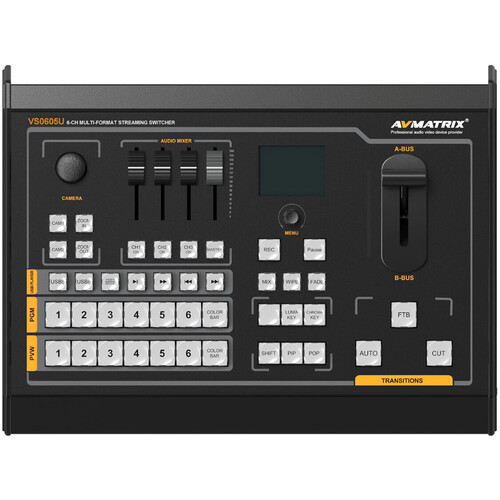

AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher

AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher

USB Capture For Streaming
The VS0605U features with an added built-in USB Type-C output, when connecting with PC, it will work like a webcam for capturing uncompressed video and audio quality and streaming your production to various software and platform like Twitch, Youtube, Facebook LIVE, Zoom, etc. No driver needed, and compatible with Windows 7/8/10, Linux and Mac OS.

Features:

• Uncompressed capture for live streaming, comply with UVC & UAC
• 6 channel inputs: 4xSDI and 2xDVI-I/ HDMI/ VGA/ USB player
• 3xSDI/ HDMI PGM outputs, 1xSDI AUX output, 2xSDI/ HDMI multiview outputs
• T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
• Luma Key/ Chroma Key for virtual studio
• Record PGM video to SD card, up to 1080p60
• Remote PTZ camera control: Visca & Pelco D/P protocols
• PiP & PoP mode size and position is adjustable
• Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
• Tally port for multiple camera system
