Blackmagic Design DeckLink Quad HDMI Recorder Capture Card

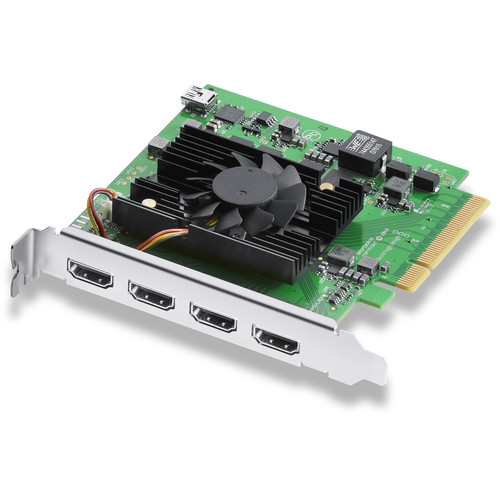

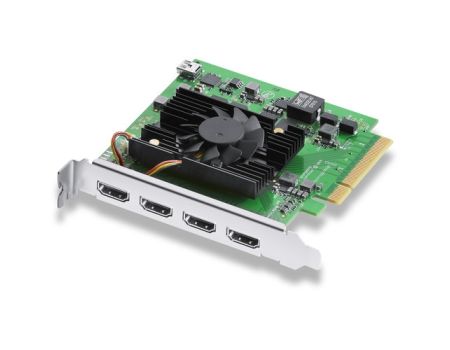

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card. The DeckLink Quad is a PCIe card that features four HDMI 2.0b inputs that provide support for resolutions up to DCI 4K60. Additionally, the DeckLink Quad supports eight channels of embedded 24-bit 48 kHz audio.

The DeckLink Quad offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications.

The DeckLink Quad is compatible with Mac, Windows, and Linux based workstations. Drivers and utility software is included on an SD card for the supported platforms.

• Key Features:
• PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
• Four HDMI 2.0b inputs
• Up to DCI 4K60 capture
• 12-bit 4:4:4 color up to 4K30 in all modes
• HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI, and DVI modes
• Rec. 601, Rec. 709, and Rec. 2020 color space
• Copy protection compliant; HDMI input is unable to capture from copy protected HDMI sources
• Supports 8 channels of embedded 24-bit 48kHz audio in SD/HD/UHD/4K
• Software Applications Supported
• Supports major software applications such as Wirecast, vMix, and OBS

Other supported applications include Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, Tools On Air Just: In

Advanced Media is BLACKMAGIC DESIGN authorized reseller. Contact Advanced Media Dubai for Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
