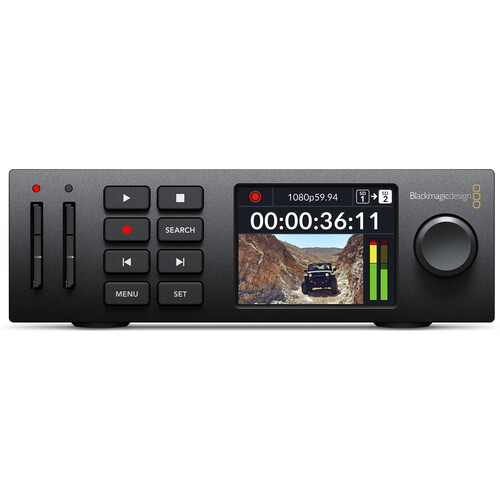

Blackmagic HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC, or via an optional 12 VDC power supply for portability. Featuring one 3G-SDI input, one each HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, enabling you to input, record, and output/stream simultaneously. Supporting both reference and timecode in/out, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording of each camera with perfect sync for live and post-production work.
Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
UHD 4K Recording and Playback
The HyperDeck Studio HD Mini records UHD and DCI 4K video at up to 30 fps
Video Inputs
It supports SD, HD, and 3G signals over SDI
Supported Codecs
ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
VTR-Style Controls
Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or play back video
Included Software
The HyperDeck Studio HD Mini includes Blackmagic OS and Blackmagic HyperDeck Setup
Advanced Media is BLACKMAGIC DESIGN authorized reseller. Contact Advanced Media Dubai for Blackmagic HyperDeck Studio HD Mini
