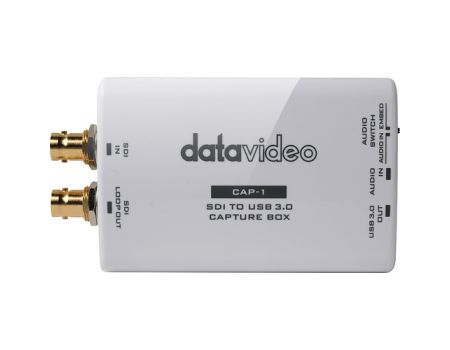

Datavideo SDI to USB 3.0 Capture Box

Datavideo SDI to USB 3.0 Capture Box allows you to capture uncompressed video with audio from your camera or deck's SDI output on your computer for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary (except with Windows 7). It features a 3G-SDI input and loop-through output, and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution.

The Capture Box outputs YUY2 and MJPG over USB 3.0 and MJPG when connected to a USB 2.0 host connection. It supports video formats up to 1080p60, as well as 720p in both US and European frame rates. The device features a physical switch that allows you to select between audio embedded in the SDI signal or analog audio via a built-in 3.5mm stereo input port. You power the device via the USB port, and it is compatible with select Windows, macOS, and Linux operating systems.

• 3G-SDI capture to USB 3.0 (backward compatible with USB 2.0)
• Loop-through SDI output
• Supports up to 1080p60, as well as 720p
• Supports audio embedded in the SDI signal
• A physical switch on the device allows you to select from embedded audio to external input audio
• Supports two channels of analog audio input via 3.5mm port
• Bus-powered from the USB port
• Compatible with Windows, macOS, and Linux Ubuntu
• Please note that the device connects to a computer using a USB Type-A connector; you will need an adapter, not included, to connect to a computer with a USB Type-C port

Software Compatibility
Windows:
Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom

macOS:
OBS, Quicktime player, VLC, Facetime

Linux:
VLC, OBS
Hardware Requirements
PC: Intel CoreTM i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or higher
Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
4GB of RAM or higher

Advanced Media is DATAVIDEO authorized distributor. Contact Advanced Media Dubai for Datavideo SDI to USB 3.0 Capture Box
