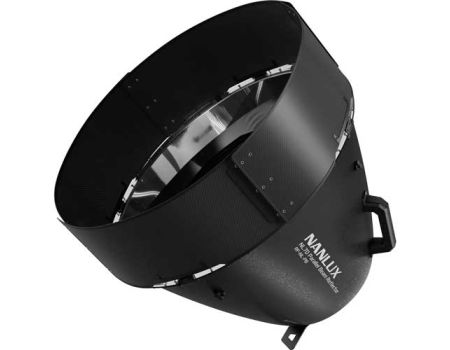

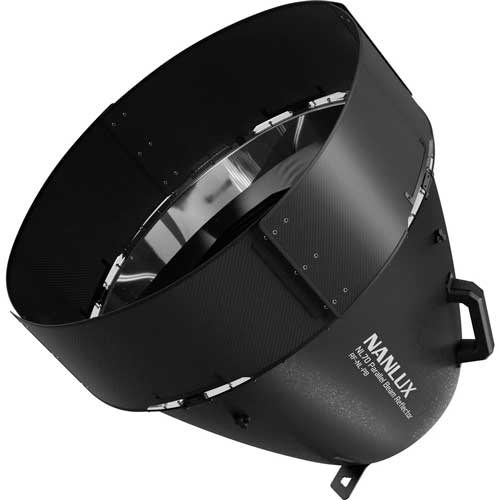

The NL70 Parallel Beam Reflector is a professional lighting modifier with a well-defined long-throw beam and minimal light loss. It features a highly optimized optical design that works perfectly with the Nanlux Evoke 2400B and other Evoke series NL mount light fixtures, making it an excellent solution for shooting scenarios that require a high-intensity parallel beam, natural light with low light decay, or efficient light for use with reflector.
Key Features:
Innovative Light Shaping
The NL70 parallel beam reflector features a beam angle of 6°. It is fitted with an internal grid design, and when combined with its snoot, it effectively reduces spill light, ensuring a focused and even light output. When used with compatible Evoke series light fixtures, it creates a cinema- grade parallel light beam.
When mounted on the Evoke 2400B, the light output can be increased by up to 21 times compared to using the light alone. This combination, with its high efficiency and parallel beam features, is outstanding for long-distance lighting scenarios. At a distance of 10 meters, the illuminance can reach 22,420 lux (5600K), effortlessly meeting the lighting demands of large-scale productions and outdoor projects.
Smart Design, Minimal Weight
The NL70 parallel beam reflector is made from lightweight materials and achieves exceptional weight reduction through optimized structural design. With a diameter of 720mm/28.35", it weighs only 9.37kg/20.66lb, making transport, handling, and setup easy, even by a single person
Efficient Installation and Lighting
The NL70 parallel beam reflector comes with a carbon fiber snoot that can be detached into four separate leaves. This design balances lightweight materials and high strength, making it able to withstand repeated use and ensuring long-lasting durability. The installation of the snoot is straightforward, requiring only the attachment of hook and loop fasteners on the edges of the leaves. This enhances efficiency as there is no need for tools or complex procedures. This attachment system effectively reduces spill light, enhances light concentration, and ensures the fixture delivers the desired beam.
Versatile for Every Scene
With the NL70 parallel beam reflector installed, the Evoke series fixtures can easily simulate sunlight streaming into a room. This is due to the narrow, more focused and practically parallel beam which minimizes light decay over distance, resulting in more natural lighting.
The combination can also simulate searchlight effects, effortlessly creating the intense lighting required for large outdoor scenes such as battlefields, prison watchtowers and guard posts. The parallel beam performance can also be used to significantly extend the light source's reach within small spaces when using reflectors while minimizing light scatter. This offers greater flexibility and more creative possibilities, achieving high-quality natural lighting within limited spaces. It can also create a single shadow effect when combining with reflector.
Weatherproof Protection
The NL70 parallel beam reflector comes with a dust cap to safeguard it when being moved or stored. The PC optical cover at the front not only prevents dust entering, but also effectively keeps out insects, ensuring long-term stability in light quality. This allows the NL70 parallel beam reflector to be used with the Evoke series fixtures in dust, rain, snow, forests and other environments, ensuring smooth operation for outdoor productions.
