RED DSMC2 SIDE HANDLE

RED DSMC2 SIDE HANDLE

Add to Wish List
  • For WEAPON 8K S35, WEAPON 6K
  • For EPIC-W, SCARLET-W, RED RAVEN
  • Molded Rubber Grip
  • Dedicated Focus and Iris Controls
  • Integrated Record Button with Mark Frame

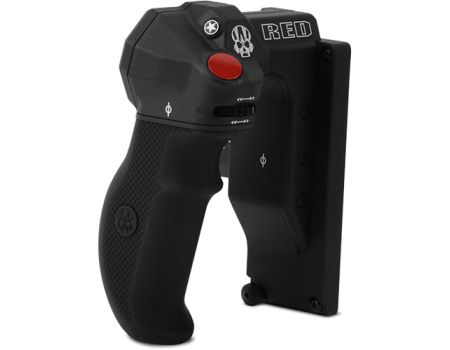

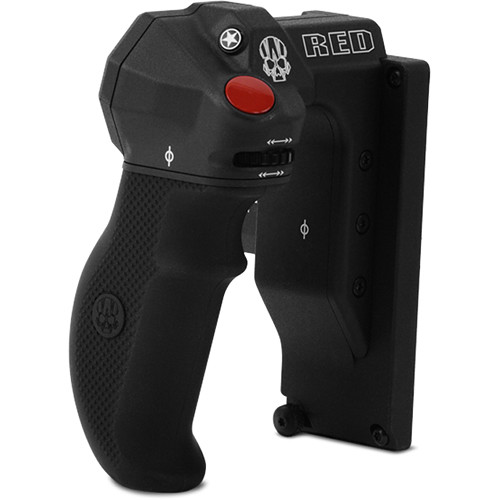

The DSMC2™ Side Handle has arrived and is completely redesigned for the DSMC2 camera line. Designed for shooters who prefer a compact handheld configuration, the DSMC2 Side Handle offers the most ergonomic handle option—attaching directly to the side of the camera BRAIN®.

The DSMC2 Side Handle features a molded rubber grip and puts primary camera controls right at your fingertips. A primary navigation wheel (front) offers direct control over lens focus, while a secondary navigation wheel (side) supports iris functions. The rotary wheel and D-Pad provide advanced control over menu options directly from the handle. Four customizable camera parameter buttons provide quick access to controls such as exposure, white balance, magnification toggle, and autofocus. Additionally, a stepped encoder offers additional operation customization and lets you incrementally increase or decrease the selected camera parameters.

An intelligent DSMC2 handle wouldn’t be complete without a record button—allowing you to toggle record on/off directly from the handle. On top of an integrated RECORD button, the DSMC2 Side Handle features a MARK FRAME button, empowering you to tag frames while shooting and revisit them later in post production.

NOTE: The DSMC2 Side Handle cannot be used simultaneously with the DSMC2 Outrigger Handle or DSMC2 Sidekick.

Advanced Media is RED authorized distributor. Contact Advanced Media Dubai for RED DSMC2 SIDE HANDLE!

More Information
SPECS:

DSMC2 Side Handle

DIMENSIONS Height: 5.52 in. (140 mm)
Width: 3.68 in. (94 mm)
Depth: 3.24 in. (82 mm)
WEIGHT Approximately 0.93 lbs (420 g)
MATERIALS Aluminum Alloy and Durable Rubber
BRAIN MOUNTING 3x M4 captive mounting screws and 1x thumb knob
BRAIN CONNECTION Power and communication from DSMC2 right-side I/O connector
CONTROLS Navigation wheel, D-pad (directional pad), andENTER button
MENU button
Four (4) user defined buttons: A, B, C, D
Mark frame button
Focus/Control wheel (User assignable to focus or camera control functions)
Iris control wheel
Record start/stop button
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing
FIRMWARE REQUIREMENT Compatible with all DSMC2 firmware v6.3 or later
