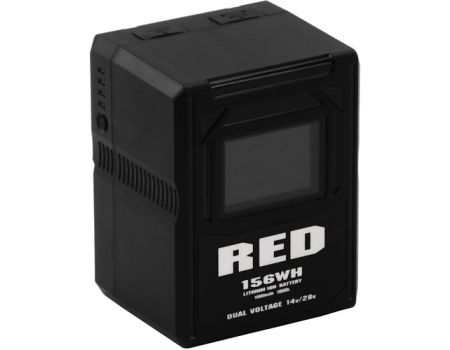

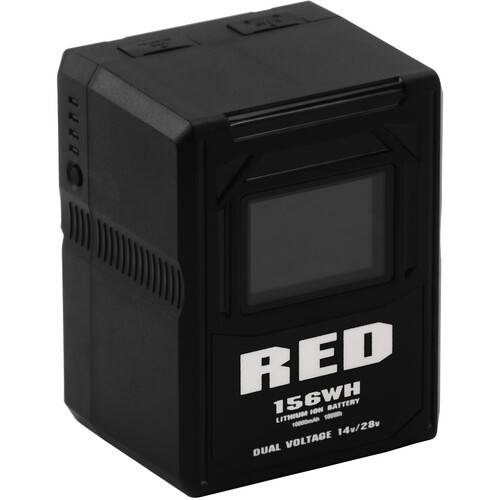

RED REDVOLT XL BATTERIES V-Lock 156Wh

The REDVOLT® XL-V is a Native Dual Voltage™ battery that can support both high voltage cameras such as the V-RAPTOR™ XL, and 14 V cameras such as the V-RAPTOR™. This battery provides 156 Wh capacity, camera-aware automatic output switching between 14 V or 28 V, and it is capable of delivering up to 400 watts of power.

Utilizing a Core SWX Helix V-Lock style mount, this battery can detect when it is mounted to a V-RAPTOR XL, and it immediately switches output to 28 volts at 12 amps by dynamically switching the pack's circuit from a parallel to series cellular arrangement with no power regulation or up-conversion. When placed on a V-RAPTOR™, or any other 14 V camera, the battery provides 14 volts at 24 amps output through the parallel cellular design.

NOTES:
The REDVOLT XL-V must be charged with a 14 V charger.
REDVOLT XL-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock Mount batteries.
