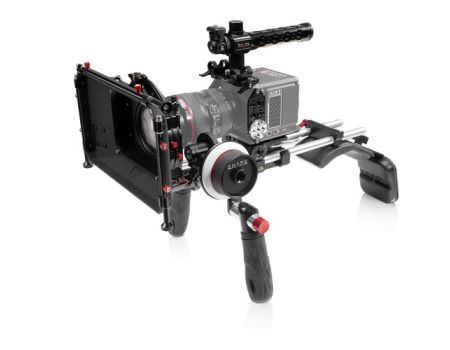

SHAPE Shoulder Mount System with Matte Box & Follow Focus Kit for RED KOMODO. The cage is the centerpiece, wrapping your camera in an external shell that allows you to attach accessories without straining the camera. The included top handle mounts on the cage, it is easy to adjust, and features multiple 1/4"-20 and 3/8"-16 mounting holes, as well as a tilting bracket suitable for adding accessories.
The included lightweight baseplate system consists of a dovetail plate that attaches to your camera. It mounts onto the system's dovetail adapter and allows you to quickly mount your camera into the baseplate, which has integrated 15mm rod clamps that the shoulder and back pad mount on to create the shoulder mount rig. The dovetail plate, attached to your camera, slides out of the baseplate system, leaving the camera without rods or shoulder pads and allowing it to mount on a Ronin 2 gimbal. The follow focus kit mounts on a single rod and has a variety of drive gears as well as a whip and speed crank. The matte box accepts two 4 x 5.65" filters and mounts onto 15mm LWS rods or clips onto your lens. Swapping the camera between the gimbal setup and shoulder mount system is fast, efficient, and requires no tools.
SHAPE 15mm Lightweight Baseplate for RED KOMODO
The SHAPE 15mm Lightweight Baseplate for RED KOMODO is a flexible system designed so you can easily swap your camera between a lightweight Ronin 2 gimbal system and a tripod-mounted system without having to swap baseplates. It features a dovetail plate, an adapter plate, and a lightweight baseplate with rod clamps. The dovetail adapter mounts onto the 15mm lightweight baseplate, and the dovetail plate mounts on your camera enabling you to move between your gimbal and your tripod.
The adapter plate features two 3/8"-16 threaded mounting holes with ARRI-style anti-twist divots, one on each side of the plate, that accept a variety of accessories as well as optional SHAPE ARRI-style rosette inserts for attaching handgrips for handheld use. The lightweight baseplate mounts on your tripod/tripod plate via 1/4"-20 and 3/8"-16 threaded holes, and it has integrated 15mm LWS rod clamps for the included aluminum rods.
Compatibility
RED DIGITAL CINEMA KOMODO camera
DJI Ronin 2
Mounting
The baseplate mounts onto your tripod
The dovetail plate slides into the dovetail adapter, which mounts on the baseplate
The dovetail plate is compatible with the DJI Ronin 2, and it allows you to move quickly between the gimbal and baseplate setup
SHAPE Camera Cage with Top Handle for RED KOMODO
Add flexible carrying and improved accessory mounting, while protecting your RED KOMODO cinema camera with this SHAPE Camera Cage with Top Handle for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.
The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera, you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera.
The Top Handle
Mounts on your cage
Utilizes the push-button release system that allows you to adjust the orientation using a single hand
Adjustments can be made on the fly, without stopping the shoot to loosen, adjust, and then tighten levers
Press the release button, adjust the position, and release the button
A removable bracket slides into the cold shoe on the front of the top handle and allows you to mount accessories up to 4.4 pounds
The top handle offers nine 1/4"-20 threaded mounting holes and twelve 3/8"-16 mounting holes with anti-twist divots
It features aluminum construction with a strip of maple wood for comfort
Cage
The advantage of the cage is it provides a rigid external frame to your RED KOMODO for attaching accessories without stressing or damaging your camera's body.
Accessorize
The RED KOMODO camera's boxy shape is efficient, though not very ergonomically friendly. The cage allows you to add optional grips to your camera via the ARRI-style rosettes, providing the opportunity of making the camera more handheld friendly.
Accessory Mounting on the Cage
Multiple 1/4"-20 accessory mounting threads for attaching a variety of available accessories, such as articulating arms.
Additional 1/4"-20 and 3/8"-16 threaded holes with ARRI-style anti-twist divots allow you to attach accessories that stay secure and won't unexpectedly twist, which usually happens at the worst moment, ruining the shot.
Two individual 15mm spring-loaded rod clamps can be mounted on the cage for adding rod-mounted accessories.
Rod Clamps
The individual rod clamps can be attached to the cage and allow you to mount optional 15mm rods. Each clamp uses a spring-loaded lever for securing your rod in the clamp.
SHAPE Quick Handle + Rod Block
The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.
Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle
Provides professional video stabilization with 2 handles
Each handle offers 360° individual rotation
Offers easy attachment/removal
SHAPE Mini Composite Shoulder Pad
The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.
SHAPE Back Pad
The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
Compatible Support Series
Composite
Cameleon
Sumo
Spider
SHAPE Follow Focus Kit with Single 15mm Rod Clamp
Use the compact SHAPE Follow Focus Kit with Single 15mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens.
At the core of the kit is a rubber, anti-slip follow focus wheel attached to a single aluminum 15mm rod clamp. The clamp rotates to adjust to most lens sizes, and it's tightened by a locking lever. The clamp's rotation also allows the focus wheel to easily swing out of the way when changing lenses.
Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.
For alternate fine-focus configurations, use the included speed crank or 11" whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel.
Modular design allows for addition and removal of components without tools or screws. Its compact size allows it to fit easily with lens accessories like a matte box.
The rubber follow focus wheel is attached to an adjustable, aluminum 15mm rod clamp which can swing away when changing lenses.
The focus wheel fits most lens sizes. Five drive gears are included: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T.
A rubber friction wheel is included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.
An 11" whip and a speed crank are included. Each connects to the focus wheel for fine adjustments.
Four magnetic marking disks are included to attach to the focus wheel.
SHAPE 2-Stage 4 x 5.6" Clip-On and 15mm LWS Rod-Mounted Matte Box
The SHAPE 2-Stage 4 x 5.6" Clip-On and 15mm LWS Rod-Mounted Matte Box provides filmmakers flare and glare protection when creating their images, whether in a minimal configuration or on a large studio shoot. The matte box can be used either as a clip-on matte box when not using rods or with 15mm LWS rod supports, providing you the flexibility to use the same matte box in either shooting situation. The matte box comes with 114 and 84mm clip-on adapter rings.
The matte box features two rotating 4 x 5.6" filter stages, ideal for use with polarizers, grad, and effect filters. The two included 4 x 5.65" filter holders feature a spring-latch system to hold your filters securely, and each filter stage has a locking knob that enables you to precisely set the height of your filter in the stage. The matte box accepts lenses with a front diameter up to 114mm, and it includes an 82mm filter ring. It comes with six step-down rings that allow you to use lenses with an outer diameter of 52, 58, 62, 67, 72, and 77mm, preventing light from sneaking past the lens from behind the camera and degrading your image.
Compatibility
Photo lenses with a minimum diameter of 52mm
Professional video optics with up to 114mm front diameter
Includes six step-down rings (52-82mm, 58-82mm, 62-82mm, 67-82mm, 72-82mm, and 77-82mm)
For rod-mounted or clip-on use
SHAPE 15mm Rods (18", Pair)
These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
Rod Block
Pair of aluminum support rods for 15mm rod clamps.
18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.
