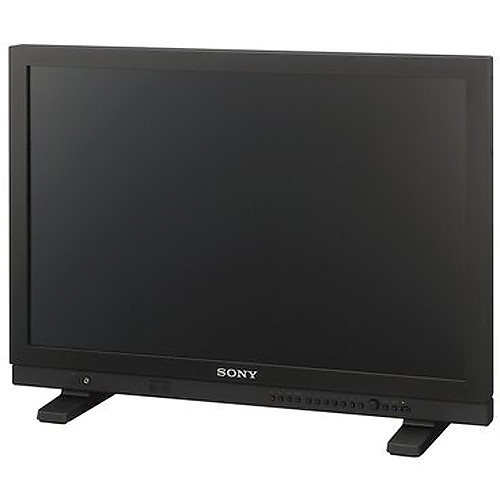

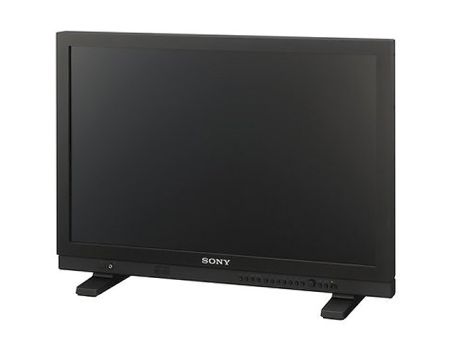

Sony LMD-A240 24" LCD Production Monitor

Add to Wish List

24" Diagonal Screen Size
1920 x 1200 Native Resolution
Supports 1080/60p Video Signals
2x 3G/HD/SD-SDI Inputs
SDI Inputs with Active Loop Through
HDMI and Composite Inputs
178°/178° H/V Viewing Angle
Waveform, Vectorscope, Focus Peaking
Embedded Audio Decoding and Display
12V DC Input on 4-Pin XLR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

Specification

In the Box

Sony LMD-A240 24" LCD Production Monitor is a portable, 1920 x 1200 resolution monitor for on set, studio, and broadcast use. The monitor features an IPS LCD display with wide 178° horizontal and vertical viewing angles and provides 3G/HD/SD-SDI, HDMI, and composite inputs, which support NTSC/PAL, 720p, 1080i, and 1080p input signals with frames rates from 24p to 60p.
The monitor introduces several new features and upgrades from previous LMD series monitors, including a new low latency automatic I/P conversion, new video processing engine for improved image accuracy, on screen tally, and yoke mounting screw holes. The monitor also provides a wide range of professional monitoring features, such as built-in waveform and vectorscope, focus assist with adjustable colored peaking, time code display, and a Slog2 to Rec 709 LUT.

A built-in audio decoder lets you display up to 16 channels of embedded SDI audio. Audio can be monitored using the 3.5mm headphone jack on the front panel, or with the 1W built-in speaker. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. Two Ethernet ports provide connectivity for serial and parallel remotes; letting you control and load monitor settings via your network, as well as upgrade the monitor's software. For use in the field, there is a 12V DC power input on 4-pin XLR.

The monitor is compatible with standard VESA 100 x 100mm mounting hardware. Optional rack mount brackets are also available. Monitor feet are included.

IPS LCD panel with 178°/178° viewing angles
1920 x 1200 native resolution
Multi format input signal support, NTSC/PAL, 1080i, and 1080p
Frame rates from 24p to 60p
Dual 3G/HD/SD-SDI inputs with active loop through
HDMI input
Composite input with loop-out
Slog2 to 709 LUT
Multiple color gamut display (SMPTE C, EBU, ITU-R BT.709 and Native)
Internal waveform monitor with zoom and line select features
Internal vectorscope with zoom
Focus assist with adjustable colored peaking
EIA/CEA 608 and 708 digital closed caption decoder
Time code display
Seven assignable function buttons
Ethernet and parallel remote control
Embedded audio decoding and display
16-channel audio monitor for SDI input
3.5mm stereo mini jack audio input
Front panel 3.5mm headphone jack
Lighted control panel
12 VDC power input
Double coated paint finish
Optional rack mount brackets

Advanced Media is SONY authorized distributor. Contact Advanced Media Dubai for Sony LMD-A240 24" LCD Production Monitor..

More Information

SPECS:

Panel/Display
Type	IPS LCD
Backlight Technology	LED
Screen Size (Diagonal)	24.1" (61.1 cm)
Effective Picture Size (H x V)	20.41 x 12.76" (51.84 x 32.40 cm)
Resolution	1920 x 1200
Native Aspect Ratio	16:10
Viewing Angle (H/V)	178° / 178°
Normal Scan	0% scan
Color Temperature	D65, D93
Warm-Up Time	Approx. 30 minutes

Input
Video Input	2 x BNC, 3G/HD/SD-SDI 1 x HDMI, HDCP compliant 1 x BNC, Composite (NTSC/PAL)
Audio Input	1 x Stereo mini jack, -5 dBu 47 kohm or higher
Power Input	1 x XLR 4-pin (male), 12 to 17 VDC (output impedance 0.05 ohm or less)
Remote Control	1 x Parallel remote, RJ-45 modular connector 8-pin 1 x Serial remote, RJ-45 modular connector (ETHERNET, 10BASE-T/100BASE-TX)

Output
Video Output	2 x BNC, 3G/HD/SD-SDI, Output signal amplitude: 800 mVp-p ±10% Output impedance: 75 ohm unbalanced 1 x BNC, Composite (NTSC/PAL) loop-though, 75 ohm automatic terminal function
Audio Output	1 x Stereo mini jack, audio monitor output 1 x Stereo mini jack, headphone output 1 x 1.0 W monaural speaker

Formats

3G-SDI (10-bit 4:4:4 YCbCr and 4:4:4 RGB supported)
1080PsF 24/25/30
1080p 24/25/30/
1080i 50/60
720p 50/60

3G-SDI (10-bit 4:2:2 YCbCr supported)
1080p 50/60

HD/SD-SDI
1080PsF 24/25
1080p 24/25/30
1080i 50/60
720p 24/25/30/50/60
575/50i (PAL)
480/60i (NTSC)

HDMI
1080p 24/25/30/50/60
1080i 50/60
720p 50/60
640x480/60p
576/50p
480/60p
575/50i (PAL)
480/60i (NTSC)

Note: 1080/25PsF, 30PsF are displayed as 1080/25PsF, 30PsF on the screen if the payload ID is added to the video signal, or displayed as 1080/50i, 60i if the ID is not added.

PC Signal Compatibility

HDMI input:
640 x 480: 25.175 MHz, fH 31.5 kHz, fV 60 Hz
1280 x 768: 68.25 MHz, fH 47.4 kHz, fV 60 Hz
1280 x 1024: 108 MHz, fH 64 kHz, fV 60 Hz
1360 x 768: 85.5 MHz, fH 47.7 kHz, fV 60 Hz
1440 x 900: 88.75 MHz, fH 55.5 kHz, fV 60 Hz
1680 x 1050: 119 MHz, fH 64.7 kHz, fV 60 Hz
1600 x 1200: 162 MHz, fH 75 kHz, fV 60 Hz
1920 x 1200: 154 MHz, fH 74 kHz, fV 60 Hz

General
Power	100 to 240 VAC, 0.5 to 0.4 A, 50/60 Hz 12 to 17 VDC (4-pin XLR)
Power Consumption	Approx. 51 W (max.) Approx. 45 W (average power consumption in the default status)
Inrush Current	Maximum possible inrush current at initial switch-on (voltage changes caused by manual switching): 45 a peak, 5 A r.m.s (240 VAC) Inrush current after a mains interruption of 5 seconds (voltage changes caused at zero-crossing): 15 A peak, 3 A r.m.s. (240 VAC)
Operating Temperature	32 to 95°F (0 to 35°C) Recommended temperature: 68 to 86°F (20 to 30°C)
Operating Humidity	30 to 85% (no condensation)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Storage Humidity	0 to 90%
Pressure Tolerance	700 hPa to 1060 hPa
VESA Mounting	100 x 100 mm
Dimensions (H x W x D)	Without feet: 15.7 x 22.3 x 3.1" (397.8 x 566.6 x 78.2 mm) With feet: 16.5 x 22.3 x 6.5" (420.3 x 566.6 x 165.0 mm)
