21.5-inch 1000nits HDR
FHD, 100% DCI-P3 QLED Panel

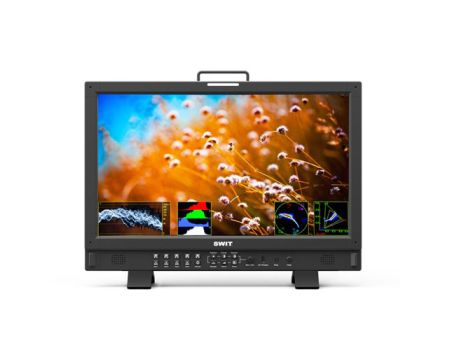

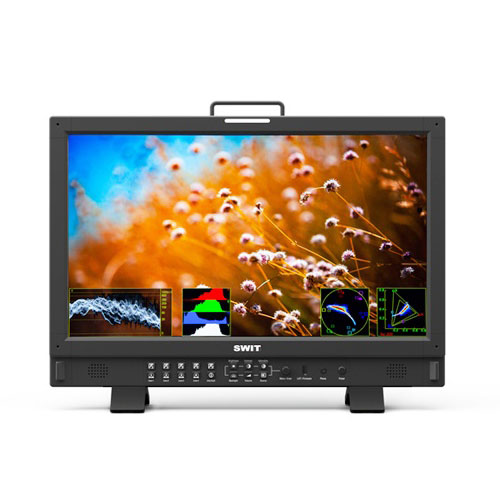

BM-H215HDR adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 1000nits high bright backlight for HDR productions, 1000:1 contrast, H/V 178° viewing angle.
Multi 4K Interfaces
BM-H215HDR provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:
- 12GSDI Single link 4K;
- 4x3GSDI Quadlink 4K, (SQD and 2SI)
- HDMI® 2.0 (4K60P)
Supports pixel-to-pixel zoom-in the 4K signal to FHD panel.
Display Modes
Supports Single link 4K input including 12GSDI, HDMI®2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
VICO 1.97 Eye Protect
BM-H215HDR QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
HLG/PQ/S-Log3 HDR
BM-H215HDR has native 1000nits high bright backlight, provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
HDR/SDR De-log LUTs
The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.
Audio Patterns
Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Moreover, BM-H monitors support Lissajous figures and 5.1 & 7.1 surround sound patterns.
Webserver IP Remote Control
BM-H215HDR supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.
