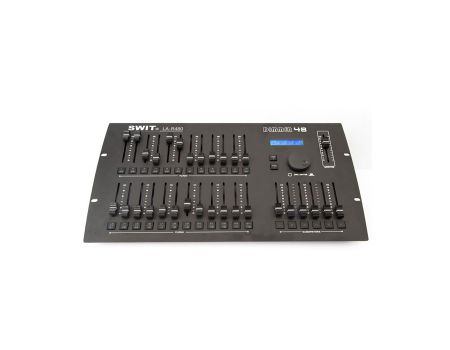

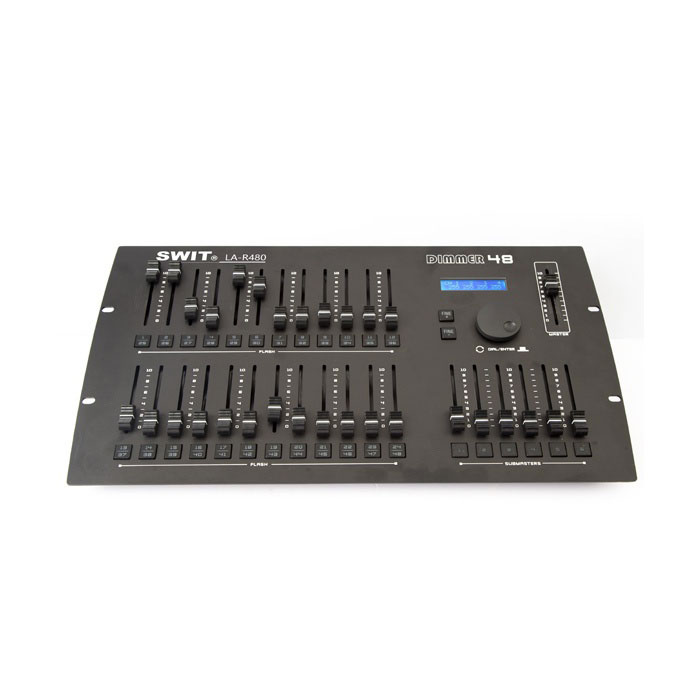

SWIT 48-ch DMX512 Light Console

SWIT LA-R480 48-ch DMX512 Light Console.

48-ch DMX Console
LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total.

Interface
LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.

Submaster and Master Control
LA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel.

Serial Connection to Max 192-ch
You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.
